Controller api

The comprehensive list of functions provided with tiled level controller.

Variable

Controlled Level

The tiled level this controller is controlling.

Basic

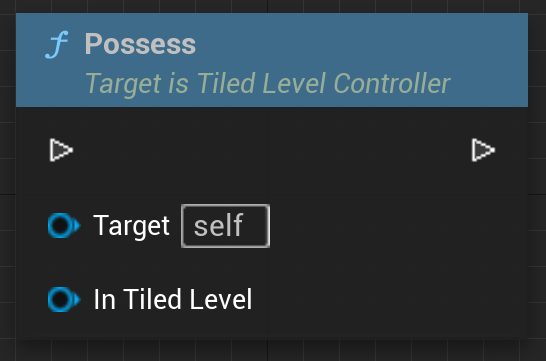

Possess

In/Out Name Type Description
In In Tiled Level Tiled Level Actor Object Reference Set the controlled level

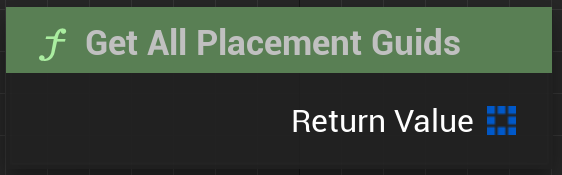

Get All Placement Guids

In/Out Name Type Description
Out Return Value Array of guid

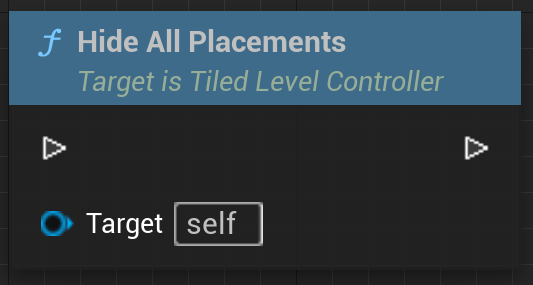

Hide All Placements

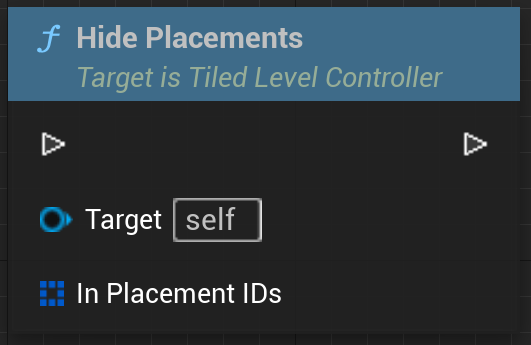

Hide Placements

In/Out Name Type Description
In In Placement IDs Array of guid Array of placement ids you want to hide

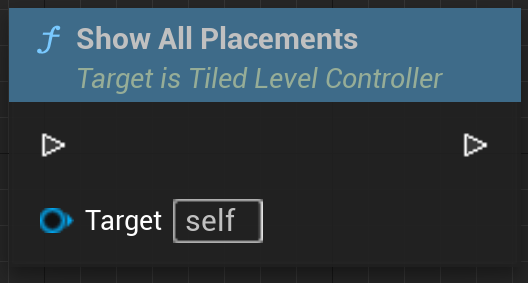

Show All Placements

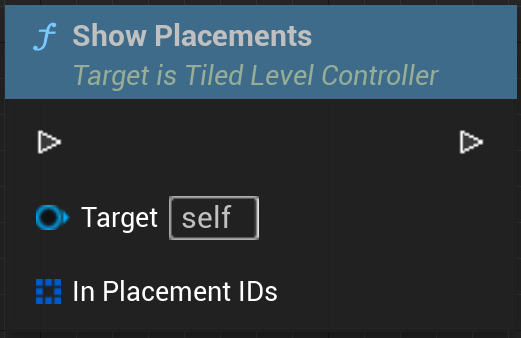

Show Placements

In/Out Name Type Description
In In Placement IDs Array of guid Array of placement ids you want to show

Find Placements at Tile Position

In/Out Name Type Description
In In Placement IDs Array of guid Placements to search
In Query Tile Position Int vector The position you want to query
Out Return Value Array of guid

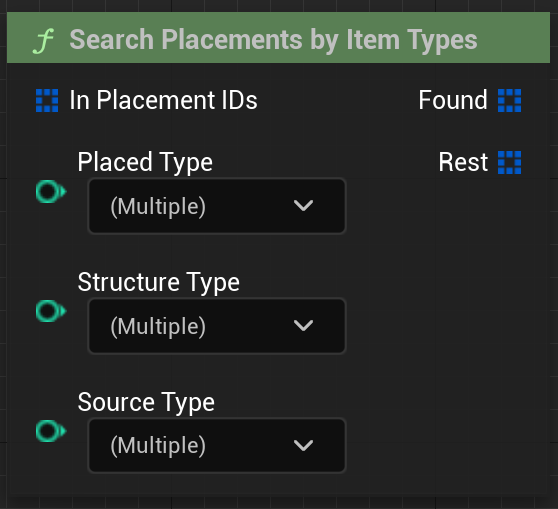

Search Placements by Item Types

In/Out Name Type Description
In In Placement IDs Array of guid Placements to search
In Placed Type Bitmask integer Types this placement should belong to
In Structure Type Bitmask integer Types this placement should belong to
In Source Type Bitmask integer Types this placement should belong to
Out Found Array of guid Array of placement ids meet the condition
Out Rest Array of guid Array of placement ids don’t meet the condition

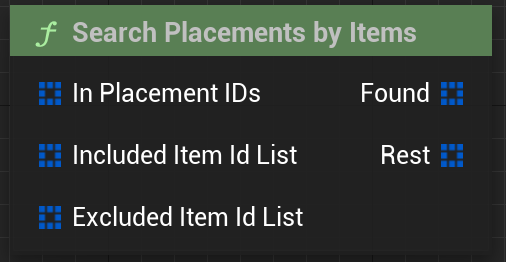

Search Placements by Items

In/Out Name Type Description
In In Placement IDs Array of guid Placements to search
In Included Item Id List Array of guid Items this placement should belong to
In Excluded Item Id List Array of guid Items this placement should not belong to
Out Found Array of guid Array of placement ids meet the condition
Out Rest Array of guid Array of placement ids don’t meet the condition

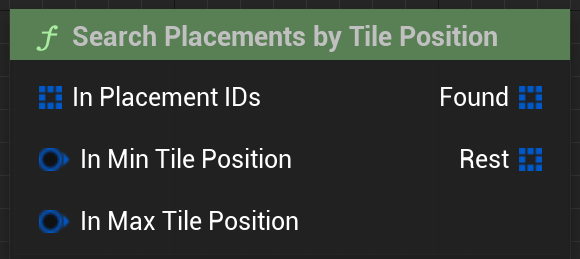

Search Placements by Tile Position

In/Out Name Type Description
In In Placement IDs Array of guid Placements to search
In Included Item Id List Int vector The tile position this placement should be greater (equal)
In Excluded Item Id List Int vector The tile position this placement should be less (equal)
Out Found Array of guid Array of placement ids meet the condition
Out Rest Array of guid Array of placement ids don’t meet the condition

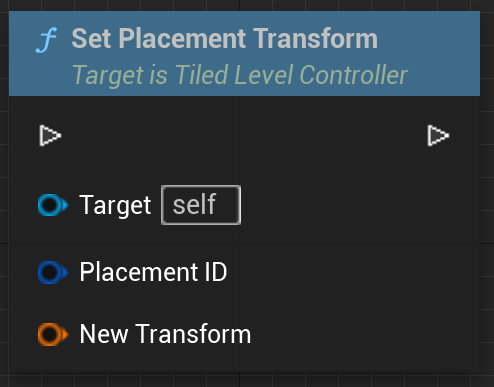

Set Placement Transform

In Name Type Description
In Placement ID Guid
In New Transform Transform The new transform

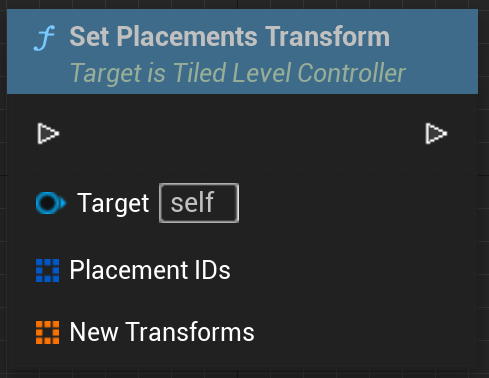

Set placements Transform

In Name Type Description
In Placement IDs Array of guid
In New Transforms Array of transforms Batch set transforms at same time.

Both input must have same length

Aync Tasks

Async way to update location / transform through time. Need to provide float curves to let these functions understand how to update the value.

  • The X-axis (time) for these float curves MUST bound to 0 to 1, represent the elapse of time. (ratio of duration)
  • The Y-axis (interp value) will interp the value based on your Start / End value.

Move Placement

In/Exec Name Type Description
In Controlled Level Tiled level object reference Target level
In Placement ID Guid Target placement
In Translation Curve Float curve object reference A curve to interp location through time
In Duration Float The time span for this task
In Start Location Vector In world space
In End Location Vector In world space
Exec Finished Triggered after task finished

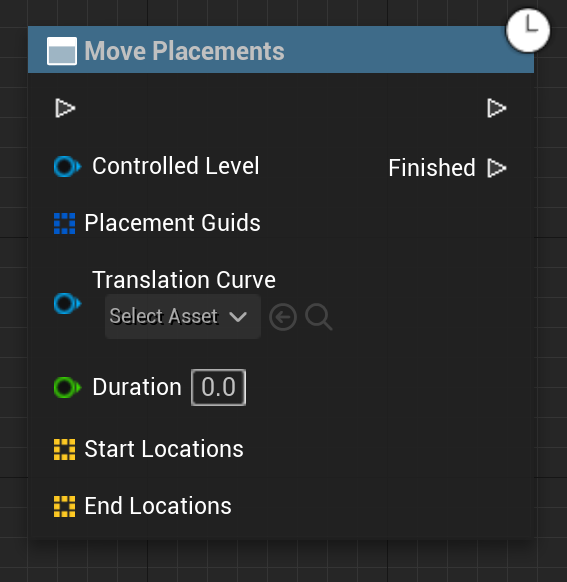

Move Placements

In/Exec Name Type Description
In Controlled Level Tiled level object reference Target level
In Placement IDs Array of guid Target placements
In Translation Curve Float curve object reference A curve to interp location through time
In Duration Float The time span for this task
In Start Locations Array of vector In world space
In End Locations Array of vector In world space
Exec Finished Triggered after task finished

Array inputs must have same length

Update Placement Transform

In/Exec Name Type Description
In Controlled Level Tiled level object reference Target level
In Placement ID Guid Target placement
In Translation Curve Float curve object reference A curve to interp location through time
In Rotation Curve Float curve object reference A curve to interp rotate through time
In Scale Curve Float curve object reference A curve to interp scale through time
In Duration Float The time span for this task
In Start Transform Transform In world space
In End Transform Transform In world space
Exec Finished Triggered after task finished

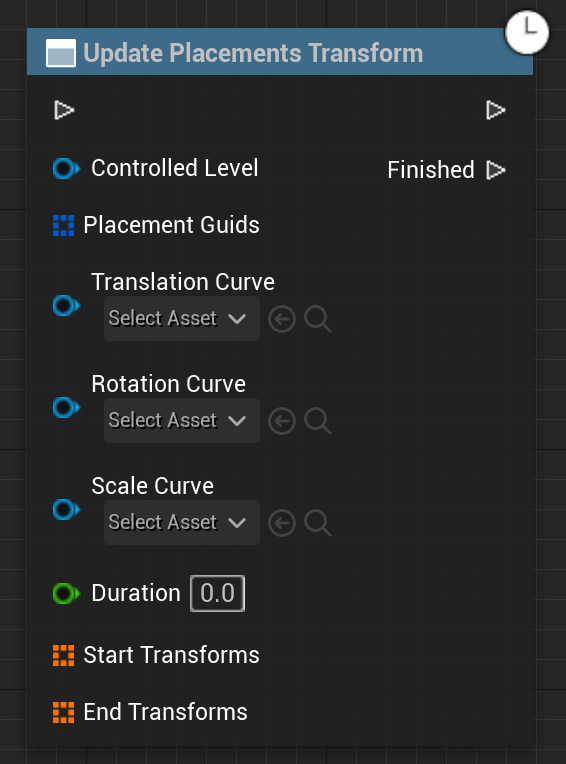

Update Placements Transforms

In/Exec Name Type Description
In Controlled Level Tiled level object reference Target level
In Placement Guids Array of guid Target placements
In Translation Curve Float curve object reference A curve to interp location through time
In Rotation Curve Float curve object reference A curve to interp rotate through time
In Scale Curve Float curve object reference A curve to interp scale through time
In Duration Float The time span for this task
In Start Transforms Array of transform In world space
In End Transforms Array of transform In world space
Exec Finished Triggered after task finished

Array inputs must have same length

Level Info

Get Min Tile Position

Return the min tile position of controlled level.

Get Max Tile Position

Return the max tile position of controlled level.

Placement Info

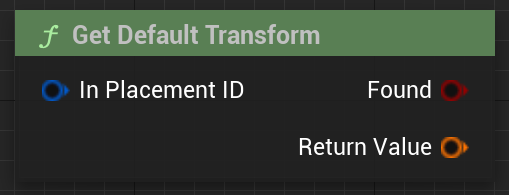

Get Default Transform

In/Out Name Type Description
In In Placement ID Guid Target placement
Out Found bool
Out Return Transform The transform of target placement in world space

Get Tile Position

In/Out Name Type Description
In In Placement ID Guid Target placement
Out Found bool
Out Return Int vector

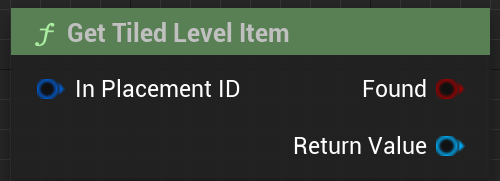

Get Tiled Level Item

In/Out Name Type Description
In In Placement ID Guid Target placement
Out Found bool
Out Return Tiled level item object reference Tiled level item this placement spawned from
